ISUZU ELF NQR B MEDIUM BUS EURO 4
Isuzu Elf NQR B Medium Bus Euro 4 terbaru , Truk Isuzu aplikasi Medium Bus kapasitas 30 penumpang dengan Karoseri pilihan Konsumen kualitas terbaik, Truk 6 ban 4×2 dengan mesin Diesel Common Rail Euro 4 Kapasitas 4.990 CC bertenaga 150 PS dan Torsi 41 KG.M/ 1,450 RPM dengan Transmisi 6 tingkat percepatan.
ISUZU ELF NQR B MEDIUM BUS EURO 4

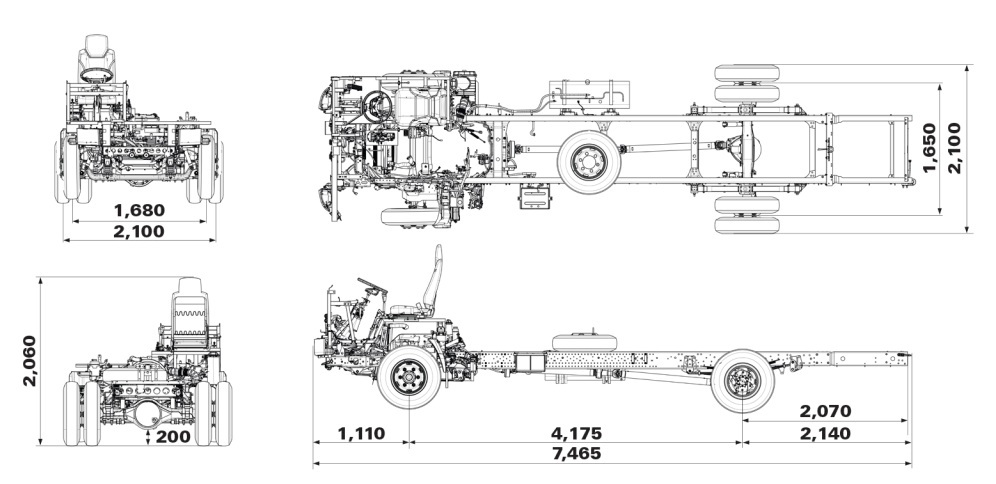

SPESIFIKASI DAN DIMENSI
DIMENSI/ DIMENSION :
| Panjang / Over all Length (OAL) | 7465 | mm |
| Lebar / Over all Width (OW) | 2100 | mm |
| Tinggi / Over all Height (OH) | 2050 | mm |
| Jarak Sumbu / Wheel Base (WB) | 4175 | mm |
| Julur Depan / Front Over Hang (FOH) | 1190 | mm |
| Julur Belakang / Rear Over Hang (ROH) | 2100 | mm |
| Jarak Terendah ke Tanah / Min. Clearence (HH) | 210 | mm |
| Jejak Depan/Front Thread (AW) | 1680 | mm |
| Jejak Belakang/Rear Thread (CW) | 1650 | mm |
MESIN/ ENGINE :
| Model Mesin | 4HL1-TCS | |
| Sistem Emisi | Direct Injection, In-Line 4 Cylinders, SOHC,Turbo Intercooler, Common Rail | |
| Diameter x Langkah | 115 X 115 | mm |
| Volume Silinder Piston | 4778 | CC |
| Daya Maksimum | 150 / 2600 | PS/ RPM |
| Torsi Maksimum | 41/1400-2600 | KGM/RPM |
TRANSMISI/ TRANSMISION :
| Tipe | MYY6S |
| 1st | 5.979 |
| 2nd | 3.434 |
| 3rd | 1.862 |
| 4th | 1.297 |
| 5th | 1.000 |
| 6th | 0.759 |
| Mundur / Rev | 5.701 |
| Final Gear Ratio | 5.125 |
PERFORMANCE :
| Radius Putar | 7,5 | METER |
| Daya Tanjak | 35,7 | % |
| Kecepatan Maksimal | 107 | KM/JAM |
BERAT/ WEIGHT :
| Berat Kosong Kendaraan | 2,298 | KG |
| Berat Total Kendaraan / Gross Vehicle Weight (GVW) | 8,000 | KG |
| Kapasitas Gardan Depan | 5,000 | KG |
| Kapasitas Gardan Belakang | 3,000 | KG |
BAN/ TIRE :
| Ukuran Ban | 7.50-16-14PR |
| Ukuran Velg | 16 x 6.00 |
REM./ BREAK :
| Tipe Rem | Hydraulic |
| Rem kaki / Service Brake | Hydraulic Brake Booster |
| Rem Tangan / Hand Brake | Expanding di transmisi belakang |
| Sistem Pengereman Gas Buang / Exhaust Brake | Exhaust brake, tuas berada di stir |
SUSPENSI/ SUSPENSION :
| Depan | Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda |
| Belakang | Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda |
TANGKI BBM : 100 LITER
KELISTRIKAN :
| Aki / Accu | 12 – 65 X 2 | V-AH |
| Alternator | 24-60 | V-A |
FITUR TAMBAHAN :
| Kamera Mundur | Tersedia |
| Fitur Tambahan | Audio Head Unit, USB Charging system, APAR (Alat Pemadam Api Ringan), Fan Blower |
| Perlindungan Garansi | Warranty 3 Tahun/ 100,000 Km |
