ISUZU ELF NMR HD 5,8 EURO 4 150 PS CDD 6 BAN
Light Truk Isuzu Elf NMR HD 5,8 Euro 4 150 PS CDD 6 Ban , Truk ringan dengan penggerak Roda 4×2 dari Isuzu yang memiliki Daya angkut 8,5 Ton dengan mesin Diesel terbaru sistem Common Rail tipe 4HL1-TCS kapasitas 4 cylinder, dengan Transmisi 6 percepatan dengan Rasio Final Gear 5,8 yang lebih kuat dan tangguh serta effisien Bahan Bakar Solar.

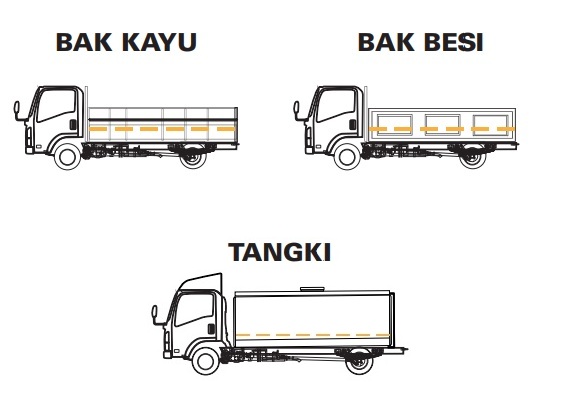

APLIKASI DAN KAROSERI ISUZU NMR HD 5,8
Isuzu Elf NMR HD 5,8 Euro 4 150 PS CDD 6 Ban memiliki peruntukan angkutan dengan kategori Logistik dan Industri , seperti : Bak Kayu rangka Besi, Bak Besi Central , Bak Besi 5 Way , Bak Besi Angkutan LPG Pertamina , LOSBAK , FLAT DECK , Box Besi , Box Alumunium , Tangki Air , Tangki BBM , Tangki CPO , Tangki Vakum , Tangki Semprot , dan lain Sebagainya,
SPESIFIKASI DAN DIMENSI ISUZU ELF NMR HD 5,8
SISTEM PENGGERAK RODA : 4X2

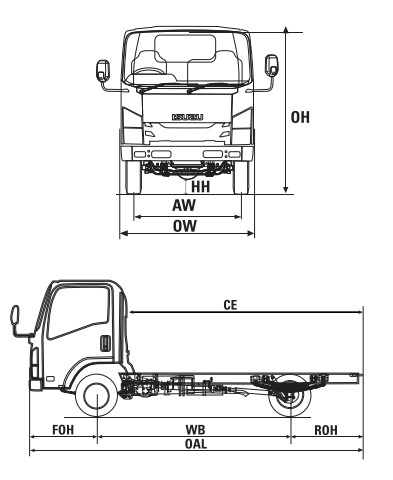

DIMENSI :
| Panjang / Overall Length [OAL] | 6.135 | mm |
| Lebar / Overall Width [OW] | 1.990 | mm |
| Tinggi / Overall Height [OH] | 2.345 | mm |
| Jarak Sumbu / Wheelbase [WB] | 3.360 | mm |
| Julur Depan / Front Overhang [FOH] | 1.110 | mm |
| Julur Belakang / Rear Overhang [ROH] | 1.665 | mm |
| Jarak Terendah ke Tanah / Minimum Clearance [HH] | 200 | mm |
| Jejak Depan / Front Tread [AW] | 1.475 | mm |
| Jejak Belakang / Rear Tread [CW | 1.495 | mm |
| Cabin to End [CE] | 4.530 | mm |
MESIN :
| Model | 4HL1-TCS | |
| Tipe / Type | Direct Injection Commonrail SOHC 4 Cylinder, VGS Turbo Intercooler | |
| Sistem Kontrol Emisi | EURO4 with EGR & DOC | |
| Diameter x Langkah / Bore x Stroke | 115 X 115 | mm |
| Isi Silinder / PistonDisplacement | 4,778 | CC |
| Tenaga Maksimum / Maximum Power | 150 / 2,600 | PS/ RPM |
| Torsi Maksimum /Maximum Torque | 41 / 1,400 – 2,600 | Kg.M/rpm |
TRANSMISI :
| Model | MYY6S | |
| PerbandinganGigi / Gear Ratio | 1ST | 5.979 |
| 2ND | 3.434 | |
| 3RD | 1.862 | |
| 4TH | 1.297 | |
| 5th | 1.000 | |
| 6th | 0.759 | |
| REV | 5.701 | |
| PerbandinganGigi Terakhir / Final Gear Ratio | 5.8 |
BERAT – GVW :
| Berat Kosong Kendaraan / Curb Weight | 2.570 | Kg |
| BeratTotal Kendaraan /Gross VehicleWeight [GVW] | 8.250 | Kg |
| Kapasitas Gardan Depan / Capacity Front Axle | 2.710 | Kg |
| Kapasitas Gardan Belakang / Capacity Rear Axle | 5.540 | Kg |
REM :
| Tipe/Type | Hydraulic |
| Rem Kaki / Service Brake | Hydraulic, saluran ganda dengan vacum booster |
| Rem Tangan / Hand Brake | Expanding pada transmisi belakang |
| Sistem Pengereman Gas Buang / Exhaust Brake | Exhaust brake, tuas berada di stir |
RODA :
| Ukuran Ban | 7.50-16-14PR |
| Ukuran Velg | 16 X 6.00 |
SUSPENSI :
| Depan / Front | Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda |
| Belakang / Rear | Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda |
LAIN-LAIN :
| Kapasitas Tangki / Fuel Tank Capacity | 100 | Liter |
| Radius Putar Minimum / Minimum Turning Radius | 7,1 | Meter |
| Daya Tanjak Maksimum / Maximum Gradeability | 44 | % |
| Kecepatan Maksimum / Maximum Speed | 100 | Km/Hour |
| Aki / Accu | 2 X 12 V – 65 Ah | V-AH |
| Alternator | 24 – 60 | V-A |
| Kamera Mundur / Reverse Parking Camera | ADA | |
| Audio Head Unit | ADA | |
| USB Charging System | ADA | |
| APAR (Alat Pemadam Api Ringan) | ADA | |
| Fan Blower | ADA | |
| Garansi / Warranty | 3 Tahun / 100,000 km |
